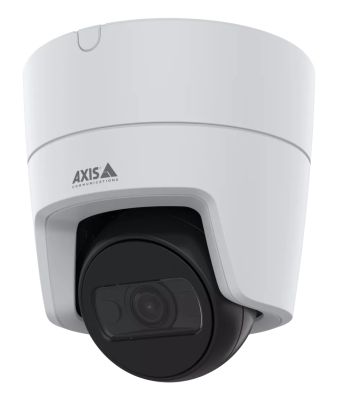

AXIS Netzwerkkamera Fix Dome M3128-LVE White 8 MP

Infrared (IR) cut-off filter

Yes

PTZ modes

Digital PTZ

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Certification

CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A

Weatherproof

Yes

IK code

IK08

Form factor

Dome

Product colour

White

Mounting type

Ceiling

Protection features

Impact resistant, Weather resistant

International Protection (IP) code

IP66

Housing material

Plastic

Minimum illumination

0.22 lx

Tilt angle range

0 - 60°

Pan range

-180 - 180°

Angle of rotation

95°

Camera shutter speed

1/71500 - 2 s

Camera pixel size

1.45 µm

Vertical field of view (thermal module)

60°

Horizontal field of view (thermal module)

110°

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Sensor type (panoramic camera)

CMOS

Signal-to-Noise Ratio (SNR) (panoramic camera)

55 dB

Number of lenses

1

Recognize distance (wide)

16 m

Observe distance (wide)

31.7 m

Identify distance (wide)

8 m

Detect distance (wide)

80 m

Normal focusing range

0.5 m

Focal length range

2.9 mm

Night vision

Yes

Night vision distance

20 m

LED type

IR

Infra-red wavelength

850 nm

Video compression formats

MPEG, MPEG4

Maximum resolution

3840 x 2160 pixels

Video formats supported

AVC, H.264, H.265, HEVC

Supported graphics resolutions

160 x 90, 3840 x 2160

Supported video modes

1080p

Frame rate

15 fps

Video streaming

Yes

Built-in speaker(s)

Yes

Sample rate

48 kHz

Signal-to-Noise Ratio (SNR)

55 dB

Audio system

2-way

Audio formats supported

AAC-LC, ADPCM, LPCM, PCM

Networking standards

IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

2048 MB

Flash memory

512 MB

Connectivity technology

Wired

Intelligent Video Surveillance (IVS) system features

Human detection, Vehicle detection

Video motion detection

Yes

Security algorithms

HTTPS

Active tampering alarm

Yes

Password protection

Yes

Pixel counter

Yes

Human and vehicle targets classification

Yes

Digest authentication

Yes

Power source type

PoE

Power consumption (max)

10.5 W

Power consumption (typical)

4.3 W

Certification

CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A

Operating temperature (T-T)

-30 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Height

93 mm

Diameter

10.1 cm

Weight

390 g

Compliance certificates

Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA)

Number of cameras

1

Manual

Yes

Doesn't contain

PVC

Compliance certificates

Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA)

Video compression formats

MPEG, MPEG4

Doesn't contain

PVC
