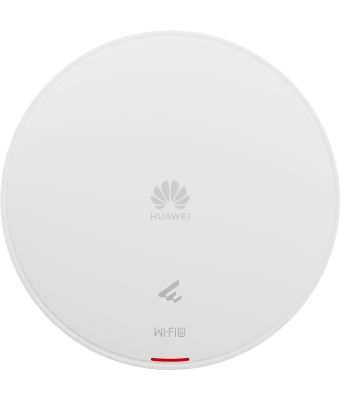

HUAWEI AP661 11ax Indoor Tri-Band Smart Antenna (02355VFC)
|
In Stock
€121.00
€143.99 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Data transmission
Ethernet LAN data rates
1000,2500 Mbit/s
Maximum data transfer rate
6575 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Web-based management
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
1000,2500 Mbit/s
Maximum data transfer rate
6575 Mbit/s
DHCP snooping
Yes
MIMO
Yes
Network
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Web-based management
Yes
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
1000,2500 Mbit/s
Maximum data transfer rate
6575 Mbit/s
Bluetooth
Yes
Maximal-Ratio Combining (MRC)
Yes
Fast roaming
Yes
Dynamic Frequency Selection (DFS)
Yes
Duplex mode auto-negotiation
Yes
Cyclic Shift Diversity (CSD)
Yes
Cyclic Delay Diversity (CDD)
Yes
Automatic channel scanning
Yes
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
6000 Mbit/s
Bluetooth Low Energy (BLE)
Yes
BeamForming
Yes
Spatial streams
8
Security
IP address filtering
Yes
Security algorithms
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2, WPA3
MAC address filtering
Yes
Access Control List (ACL)
Yes
Whitelist
Yes
DHCP snooping
Yes
Blacklist
Yes
Protocols
DHCP client
Yes
Ports & interfaces
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Power over Ethernet (PoE)
Yes
DC voltage range
12 V
Design
International Protection (IP) code
IP41
Placement
Ceiling, Wall
Product colour
White
LED indicators
Yes
Antenna
Antenna type
Internal
Antenna gain level (max)
5 dBi
Indication
LED indicators
Yes
Software
Automatic channel scanning
Yes
Access Control List (ACL)
Yes
Maximal-Ratio Combining (MRC)
Yes
Fast roaming
Yes
Dynamic Frequency Selection (DFS)
Yes
Duplex mode auto-negotiation
Yes
Cyclic Shift Diversity (CSD)
Yes
Cyclic Delay Diversity (CDD)
Yes
Weight & dimensions
Width
220 mm
Depth
220 mm
Weight
1.08 kg
Height
50 mm
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating altitude
-60 - 5000 m
Logistics data
Quantity per pack
1 pc(s)
HUAWEI AP661 11ax Indoor Tri-Band Smart Antenna (02355VFC)
