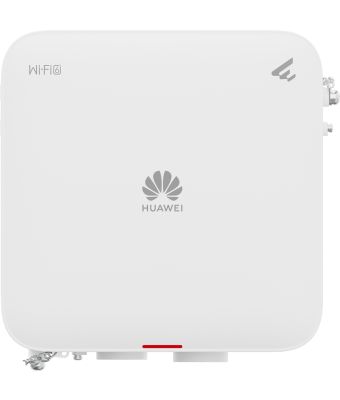

HUAWEI AP761 11ax Outdoor Dual Band Access Point with BLE (02355VFB)
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1775 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Web-based management
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1775 Mbit/s
DHCP snooping
Yes
MIMO
Yes
Network
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Web-based management
Yes
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1775 Mbit/s
Bluetooth
Yes
Bluetooth version
5.2
Maximal-Ratio Combining (MRC)
Yes
Fast roaming
Yes
Dynamic Frequency Selection (DFS)
Yes
Duplex mode auto-negotiation
Yes
Cyclic Shift Diversity (CSD)
Yes
Cyclic Delay Diversity (CDD)
Yes
Automatic channel scanning
Yes
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Bluetooth Low Energy (BLE)
Yes
BeamForming
Yes
Spatial streams
4
Security
IP address filtering
Yes
Security algorithms
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2, WPA3
MAC address filtering
Yes
Access Control List (ACL)
Yes
Whitelist
Yes
DHCP snooping
Yes
Blacklist
Yes
Protocols
DHCP client
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
SFP/SFP+ slots quantity
1
Power
Power consumption (max)
17.7 W
Power over Ethernet (PoE)
Yes
DC voltage range
12 V
Design
International Protection (IP) code
IP68
Placement
Pole, Wall
Product colour
White
LED indicators
Yes
Antenna
Antenna type
Internal
Antenna gain level (max)
11 dBi
Indication
LED indicators
Yes
Software
Automatic channel scanning
Yes
Access Control List (ACL)
Yes
Maximal-Ratio Combining (MRC)
Yes
Fast roaming
Yes
Dynamic Frequency Selection (DFS)
Yes
Duplex mode auto-negotiation
Yes
Cyclic Shift Diversity (CSD)
Yes
Cyclic Delay Diversity (CDD)
Yes
Weight & dimensions
Width
200 mm
Depth
200 mm
Weight
1.91 kg
Height
69 mm
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 100%
Operating temperature (T-T)
-40 - 65 °C
Storage temperature (T-T)
-40 - 80 °C
Operating altitude
-60 - 5000 m
Logistics data
Quantity per pack
1 pc(s)
HUAWEI AP761 11ax Outdoor Dual Band Access Point with BLE (02355VFB)
